Bump-Free 4 Channel Evaporator

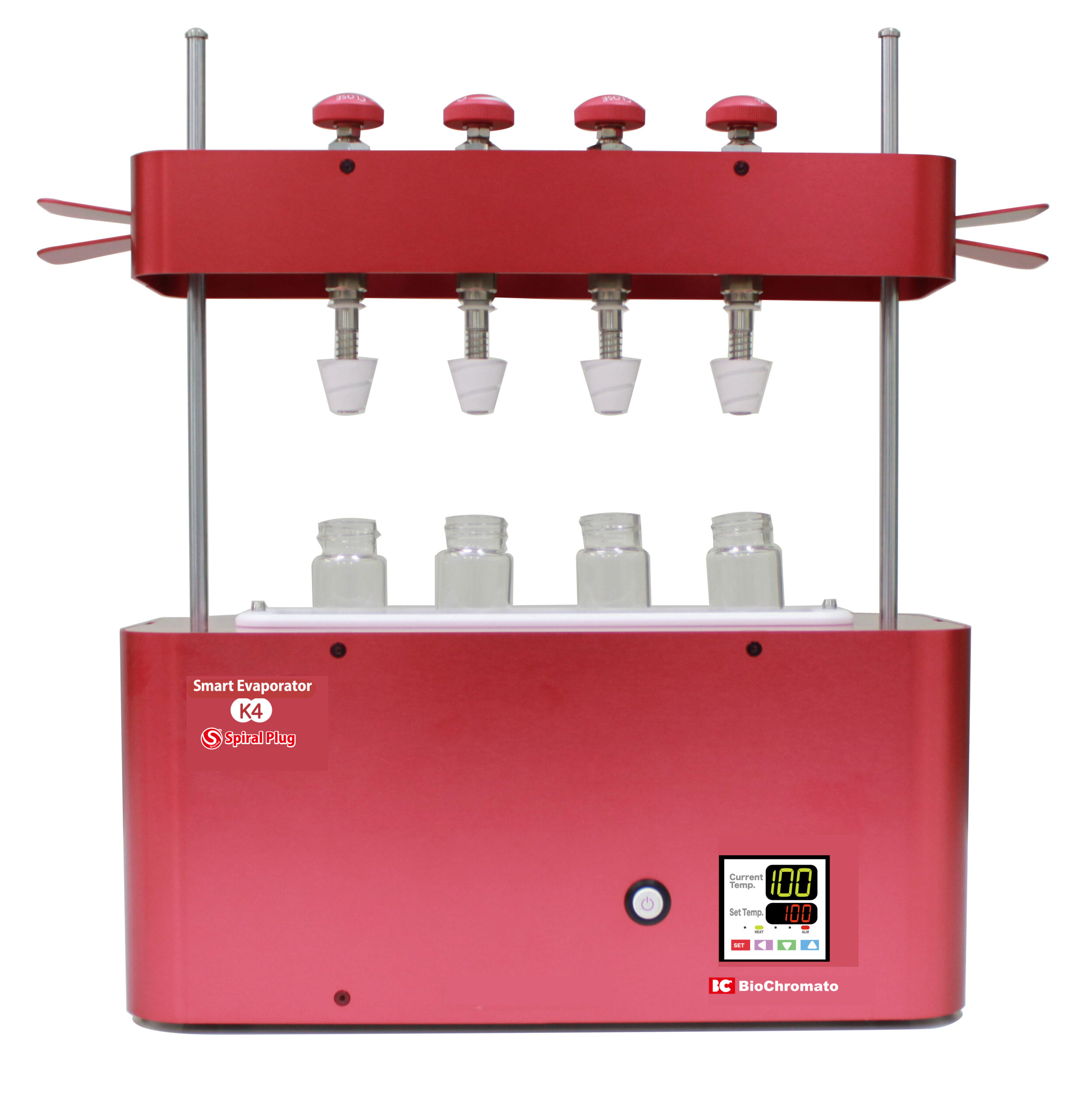

Smart Evaporator K4


  • DMSO/DMF/water evaporation with no bumping
  • 4 samples at a time for saving time
  • Compatible with various containers
  • Minimizes the loss by sample transfer

            *CE/UL/CSA certified product

Distributors   /  About Us




Product Name Smart Evaporator K4
Heater shape & size Rectangle shaped, W226mm x D55mm x H58mm
Heater temperature range Room temperature to 100℃
Inner mouth diameter of

compatible containers

 φ4~32mm (Examples of compatible containers)
Color 1 color (Sun)
Size (mm) W340 x D156 x H414.2 (except protruded parts)
Weight 4.8kg
Operating environment Temperature: 10℃~ to 40℃ Humidity: 20~80%

*This is a CE/UL/CSA certified product. (CE Certification)

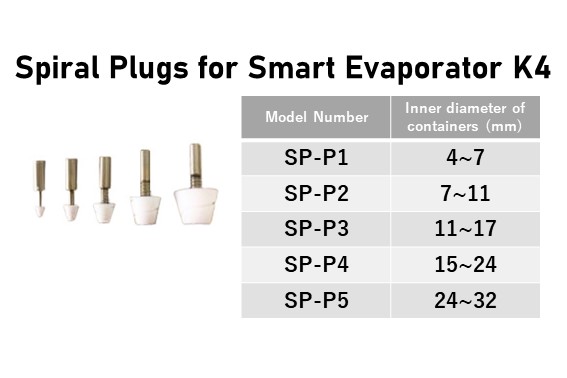

Optional Items

Spiral Plugs

Available in 5 sizes
(for supplement / replacement)

Spiral Plug SP-V series
designed for effective water evaporation
Available in 5 sizes
(for supplement / replacement)

Application Example

Vacuum Pump

High flow rate is needed for evaporating multi channels

Recommended Model:

DA-241S by ULVAC

(sold separately)
