- Improved efficiency for your fraction, purification, desalting
Easy fraction or purification works with the liquid discharging by a vacuum pump. By utilizing the Spiral Plug, the time required for evaporating or drying up samples after fraction or purification can be reduced when compared to the ordinary nitrogen blow evaporator.
- Maximum Convenience
Whole processes from the usual solid phase extraction (SPE) to the sample drying up can be performed subsequently.
This system is recommended to those who want to
・Run the discovery works to find the active fractions easily
・Desalt the prep LC fractions
・Obtain the fractions or products in 10 to 100mg orders
・Concentrate or dry up the fractions or purified products easily
One-push buttons for wasting and eluting. One valve each for stirring and concentrating samples.
Since a 60ml reservoir can be used for the sample introduction, almost 50 ml of sample solution can be processed. A filled syringe column can also be processed.
The samples can be concentrated by VVC method(*) after elution without sample transfer. 100mL or 50mL vials are compatible.
(Vacuum Vortex Concentration)

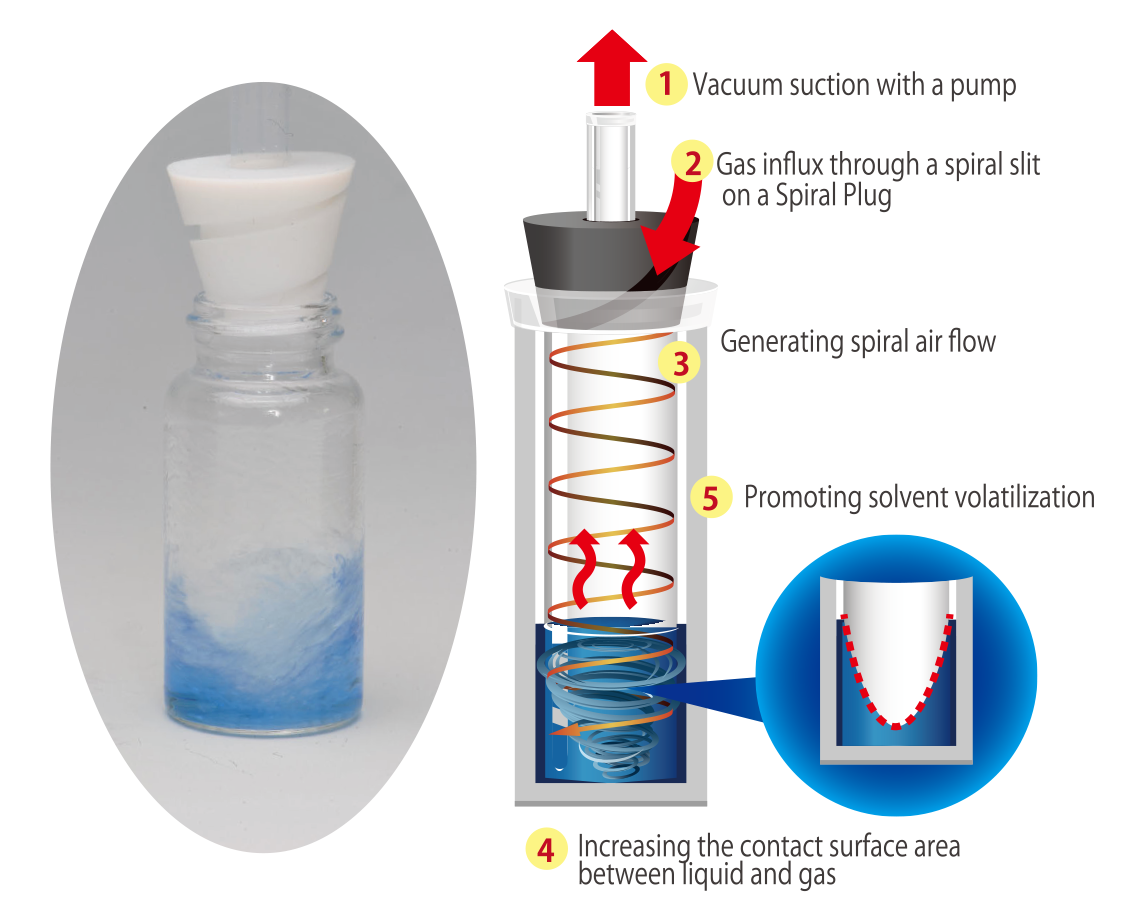

The proprietary technology “Spiral Plug” enables effective evaporation by generating vortex in a container, increasing the surface area of a sample. Also, this principal can work with samples that form skin on surface or those with high viscosity. (The concentration efficiency varies depending on samples.)
