Evaporate high-boiling solvents — with minimal bumping risk
Smart Evaporator™ rapidly evaporates DMSO, DMF, water, and other high-boiling-point solvents at atmospheric pressure using a diaphragm pump — minimal bumping risk. Six models cover everything from a single-sample unit to high-throughput 10-sample systems, compatible with a wide range of vessels — from standard vials to microtubes.
Minimal bumping risk
High-speed evaporation of high-boiling-point solvents at atmospheric pressure — no deep-vacuum system required.
Broad vessel range
One series covers a wide range of vessels — from standard vials down to microtubes — via the interchangeable Spiral Plug system.
1 to 10 samples
Start with a single-sample unit, or scale up to 8–10 samples for high-throughput workflows.
Six models, one core idea
Every Smart Evaporator™ unit evaporates high-boiling-point solvents at atmospheric pressure. Choose the model that matches your sample count, vessel format, and chemical compatibility needs — full specifications are compared in the table below.

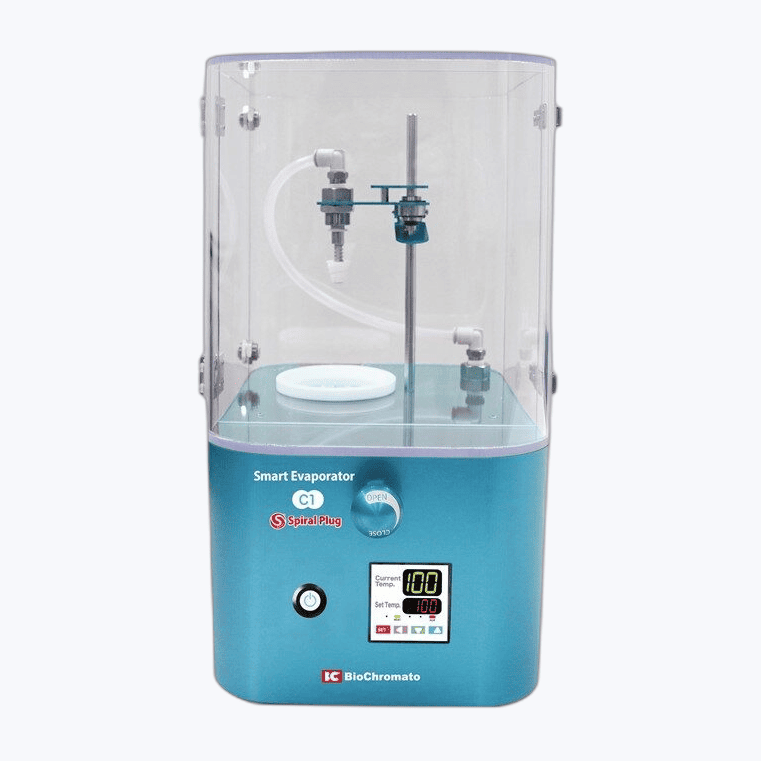

Smart Evaporator™ C1
Compact benchtop model for single-sample workflows.
- Samples 1
- Dimensions W220×D227×H382 mm
- Weight 4.3 kg
- Vessels Wide range

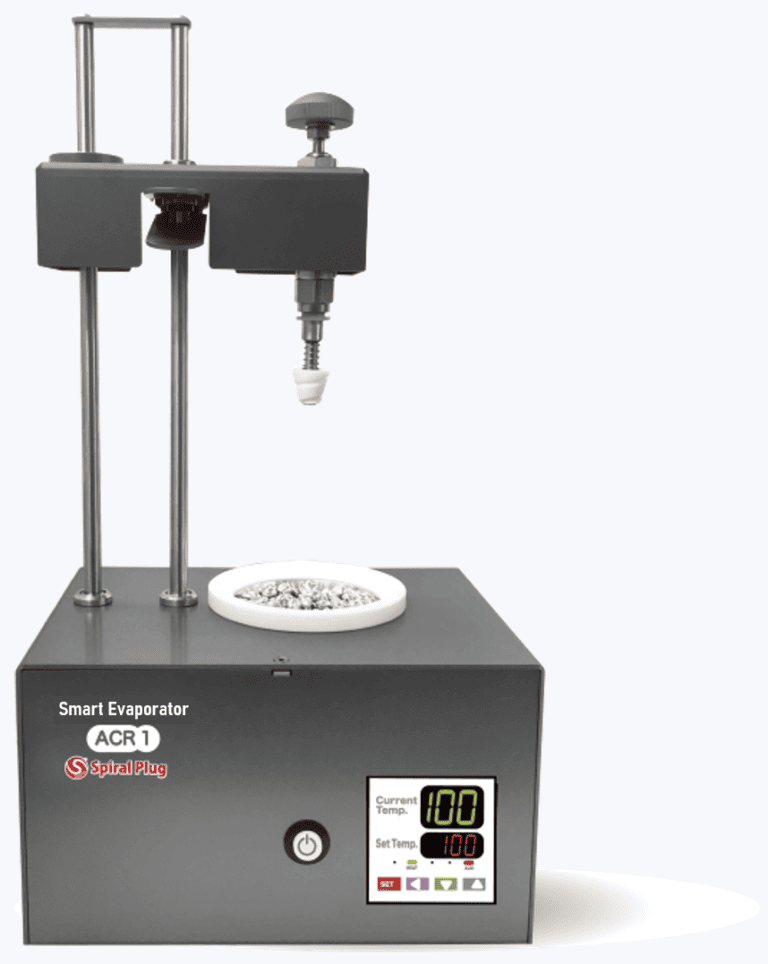

Smart Evaporator™ ACR1
The only model in the series built for solvents containing acid.
- Samples 1
- Dimensions W205×D150×H379 mm
- Weight 2.1 kg
- Vessels Wide range

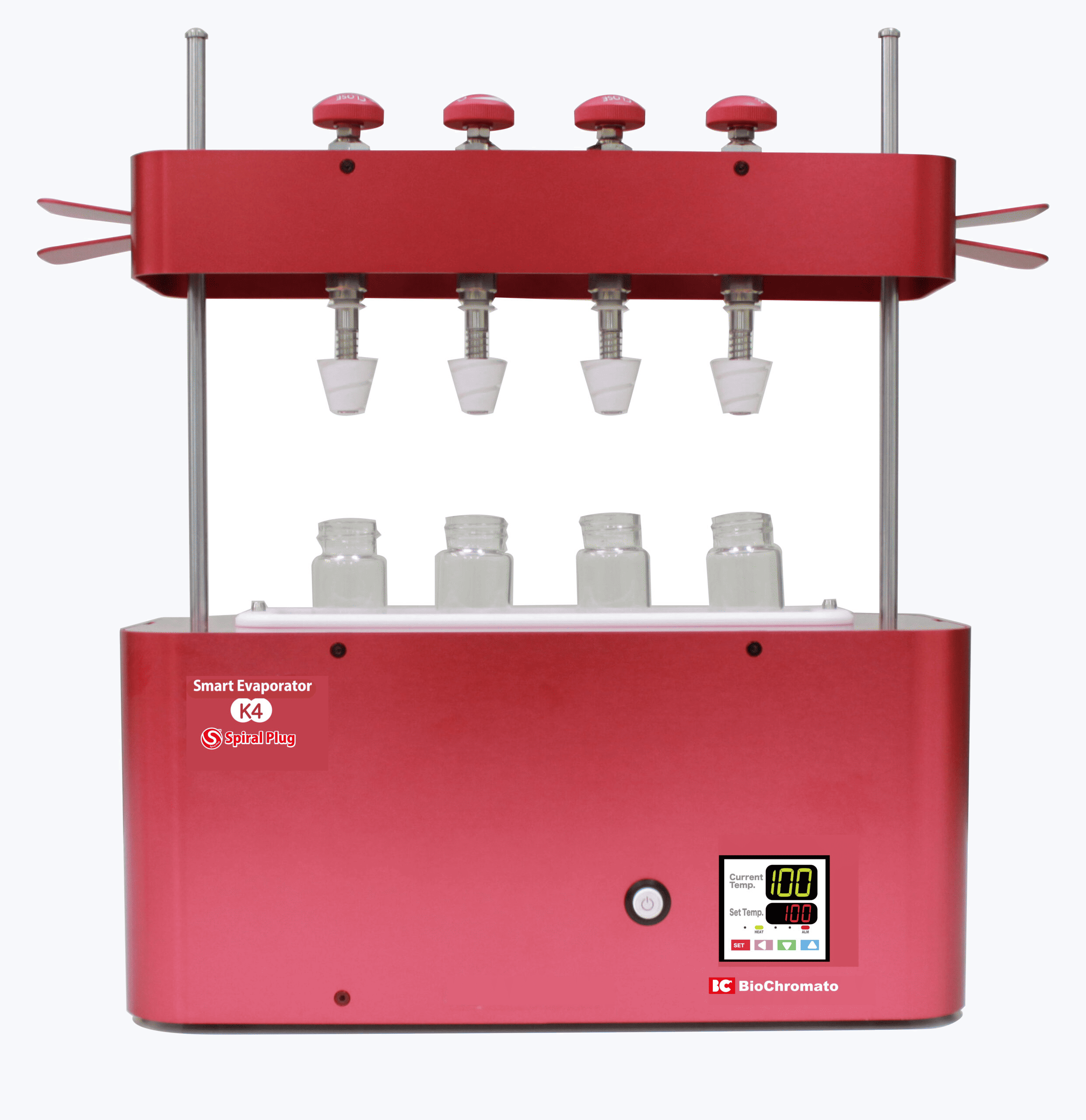

Smart Evaporator™ K4
A 4-sample model with independent control at each position, for the vessel of your choice.
- Samples 1–4
- Dimensions W340(434)×D156×H414 mm*
- Weight 4.8 kg
- Vessels Wide range
Smart Evaporator™ C4
K4 with an added enclosure and gas-replacement capability.
- Samples 1–4
- Dimensions W400×D292×H475 mm*
- Weight 10 kg
- Vessels Wide range

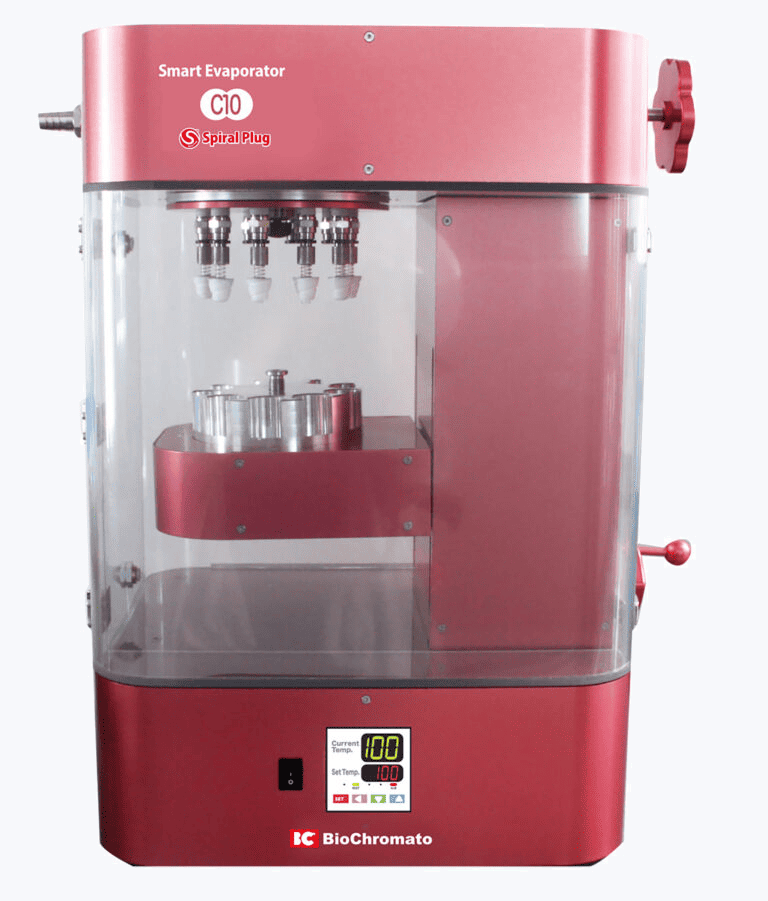

Smart Evaporator™ C10
A full-featured 10-sample model for high-throughput processing.
- Samples 1–10
- Dimensions W350(480)×D300×H531 mm*
- Weight 17 kg
- Vessels 1.5 / 6 / 20 mL vials only
Smart Evaporator™ MT8
Built exclusively for microtubes — 8 individually controllable positions with a built-in pump, in a compact footprint.
- Samples 1–8
- Dimensions W188(252)×D255(304)×H585 mm*
- Weight 11.5 kg (accessories excl.)
- Tubes 1.5 / 5.0 mL microtubes
Compare all 6 models
Scroll horizontally to see every model side by side. Pricing is available on request — see Contact below.
| Specification | C1 | ACR1 | K4 | C4 | C10 | MT8 |
|---|---|---|---|---|---|---|
| Unit | ||||||
| Sample capacity | 1 | 1 | 1–4 | 1–4 | 1–10 | 1–8 |
| Unit dimensions (W×D×H) | 220×227×382 mm | 205×150×379 mm | 340(434)×156×414 mm* | 400×292×475 mm* | 350(480)×300×531 mm* | 188(252)×255(304)×585 mm* |
| Unit weight | 4.3 kg | 2.1 kg | 4.8 kg | 10 kg | 17 kg | 11.5 kg (accessories excl.) |
| Temperature control method | Aluminum beads | Aluminum beads | Aluminum beads | Aluminum beads | Aluminum block | Aluminum block |
| Temperature range | Room temp–100°C | Room temp–100°C | Room temp–100°C | Room temp–100°C | Room temp–100°C | Room temp–60°C |
| Heating-block port size | ● type, φ69 mm | ● type, φ69 mm | ■ type, 226×55×58 mm | ■ type, 226×55×60 mm | ● type, φ120 mm | ● type, φ68.5 mm |
| Vessel Adapters | ||||||
| Spiral Plug | 1 each, P1–P5 (5 total) | 1 each, P1–P5 (5 total) | 4 of one size, your choice | 4 of one size, your choice | 10 of one size, your choice (P1–P3, E1, E2) | 8 of one size, your choice (E1 or E2) |
| Spiral Plug Size Compatibility | ||||||
| P1 | ✓ | ✓ | ✓ | ✓ | ✓ | Inquire |
| P2 | ✓ | ✓ | ✓ | ✓ | ✓ | Inquire |
| P3 | ✓ | ✓ | ✓ | ✓ | ✓ | — |
| P4 | ✓ | ✓ | ✓ | ✓ | — | — |
| P5 | ✓ | ✓ | ✓ | ✓ | — | — |
| E1 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| E2 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Compatibility & Features | ||||||
| Compatible vessels | Wide range | Wide range | Wide range | Wide range | 1.5 / 6 / 20 mL vials only | 1.5 / 5.0 mL microtubes |
| Gas replacement | ✓ | — | — | ✓ | ✓ | ✓ |
* Dimensions include protrusions such as valves and fittings. “Inquire” items are not standard and require a separate consultation. Pricing is available on request — see Contact below.
