Features
- DMSO/DMF/water evaporation with no bumping
- 4 samples at a time for saving time
- Compatible with various containers
- Minimizes the loss by sample transfer
- Individual flow rate control for each sample
- Enables gas purging within an enclosed chamber
Gas purging minimizes the effects of oxygen and moisture (humidity), reducing the risk of sample degradation. It also stabilizes the evaporation of hygroscopic solvents such as DMSO and water, making the process less sensitive to environmental conditions.
Specifications

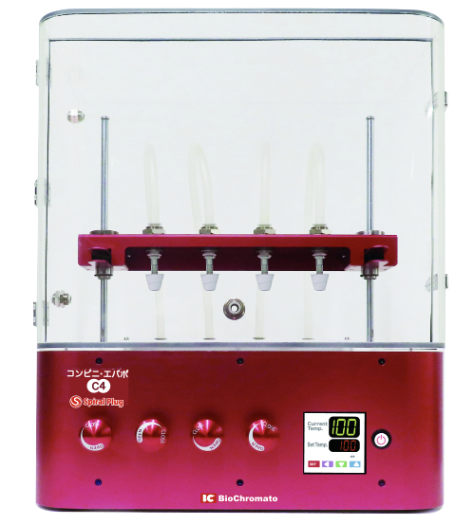

| Product Name | Smart Evaporator C4 |
| Heater shape & size | Rectangle shaped, W226mm x D55mm x H60mm |
| Heater temperature range | Room temperature to 100℃ |
| Inner mouth diameter of compatible containers | φ4~32mm (Examples of compatible containers) |
| Color | 1 color (Sun) |
| Size (mm) | W400mm x D292mm x H475mm(except protruded parts) |
| Weight | 10.0kg |
| Operating environment | Temperature: 10℃ to 40℃ Humidity: 20% to 80% |
Optional Items

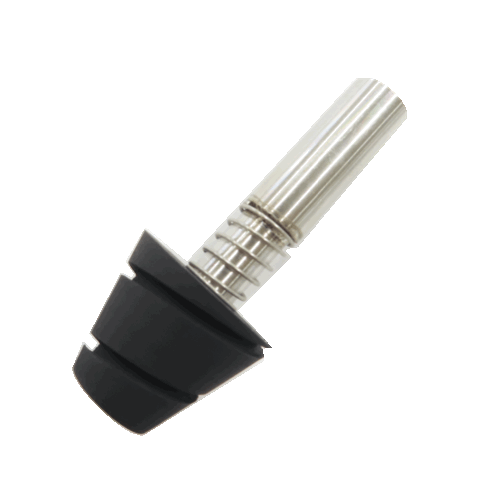

Spiral Plug SP-V series
designed for effective water evaporation
Available in 5 sizes
(for supplement / replacement)
Application Example

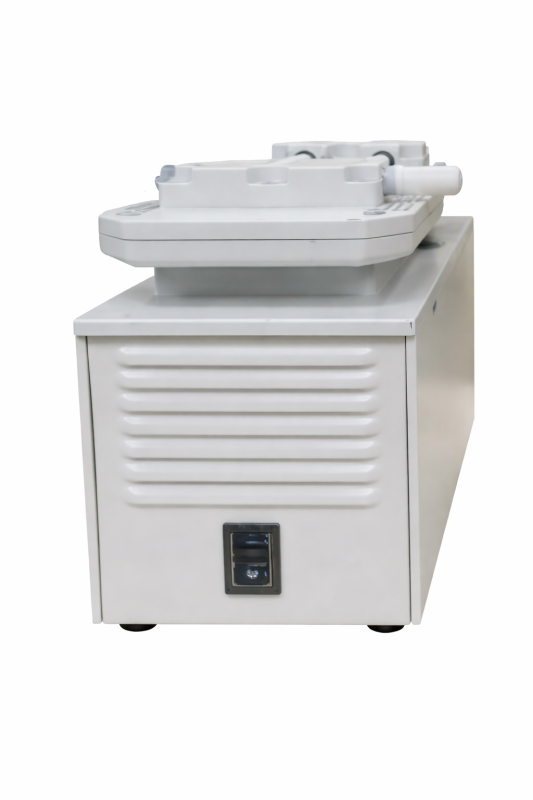

Vacuum Pump
High flow rate is needed for evaporating multi channels
Recommended Model:
DA-241S by ULVAC KIKO
(sold separately)
