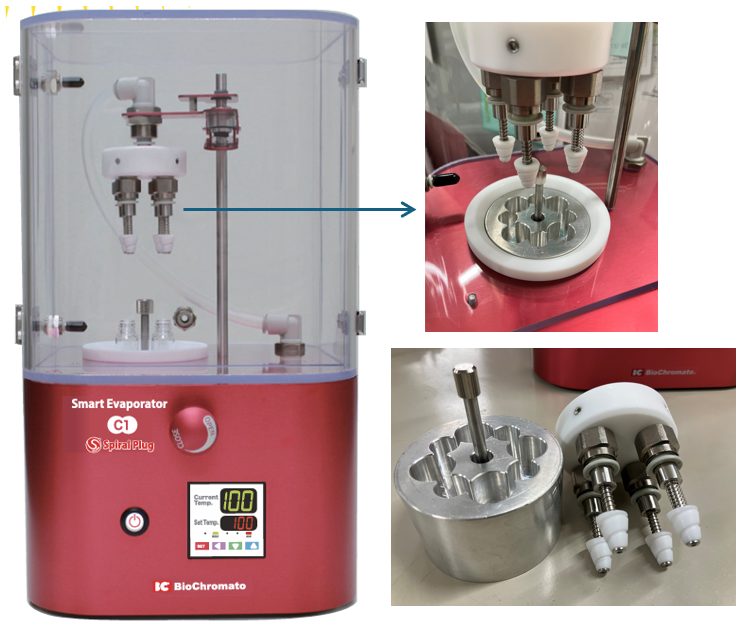

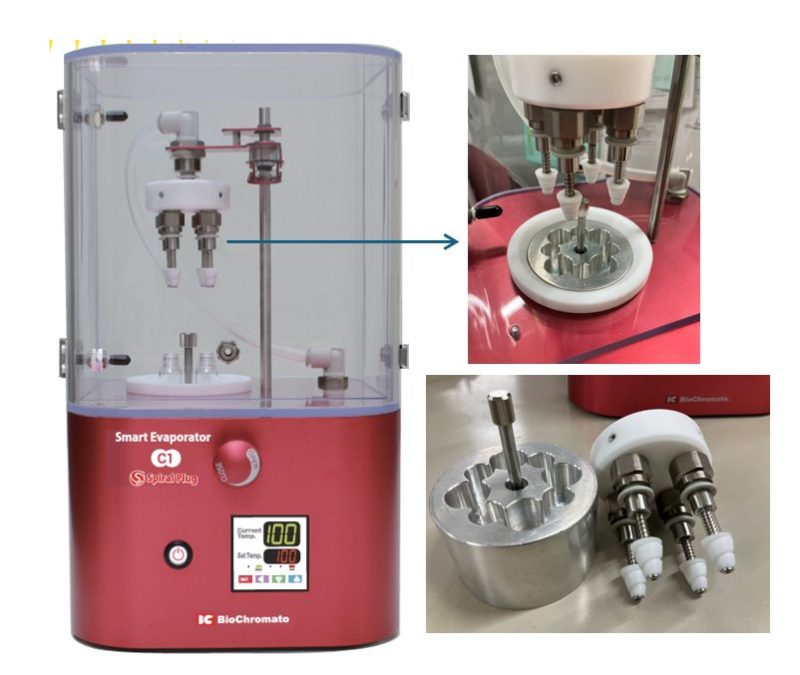

| Item | Smart Evaporator C1 + 4kit | Smart Evaporator K4 |
| Main Unit Dimensions | W220mm × D227mm × H382mm | W340mm × D156mm × H414.2mm |
| Main Unit Weight | 4.6 kg | 4.8 kg |
| Included Spiral Plugs | 4 each of P1 and P2 | 1 selected size (4 pcs) *Other sizes optional |
| Compatible Spiral Plug Sizes | SP-P1: ✅ Available SP-P2: ✅ Available SP-P3: ❌ Not Available SP-P4: ❌ Not Available SP-P5: ❌ Not Available | SP-P1:✅ Available SP-P2: ✅ Available SP-P3: ✅ Available SP-P4: ✅ Available SP-P5: ✅ Available |
| Heating Method | Aluminum block | Aluminum beads |
| Temperature Control Range | Room temperature to 100°C | |
| Compatible Containers | Only 2 mL, 4 mL, 16 mL vials | Various container types |
| Gas Purging | ✅ Supported | ❌ Not Supported |
| Product Introduction Video (Click to watch the video) | ||
*This is a CE/UL/CSA certified product. (CE Certification)
Click here for details on the 4kit.
Click here for details on Smart Evaporator K4.
