Direct analysis of PBT products

Abstract

Polybutylene terephthalate (PBT), a thermoplastic engineering elastomer, is widely used in a variety of industrial fields. Due to its industrial applications, it is important to evaluate its degradation degree to facilitate the product development process. Although there are many methods to investigate degradation degree (ex. a Durometer, an Extensometer and FT-IR), it is difficult to detect the degradation degree during its initial degradation stage.
In this application, the degraded PBT products were analyzed using ionRocket combined with DART-MS to evaluate the degradation degree of PBT during the initial degradation stage, which has not been detected by FT-IR spectroscopy.

Samples

New and the degraded PBT products

Methods

Samples (0.5 mm x 0.5 mm) was put into the ionRocket sample pot. A temperature gradient heating from room temperature to 600 ℃ was applied, the heating rate was 100 ℃/min (total run time:7 min.).

Results

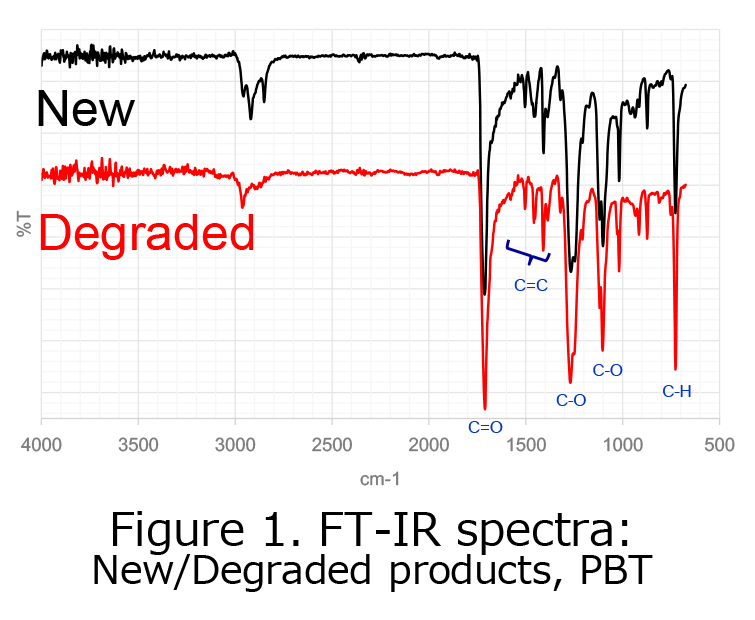

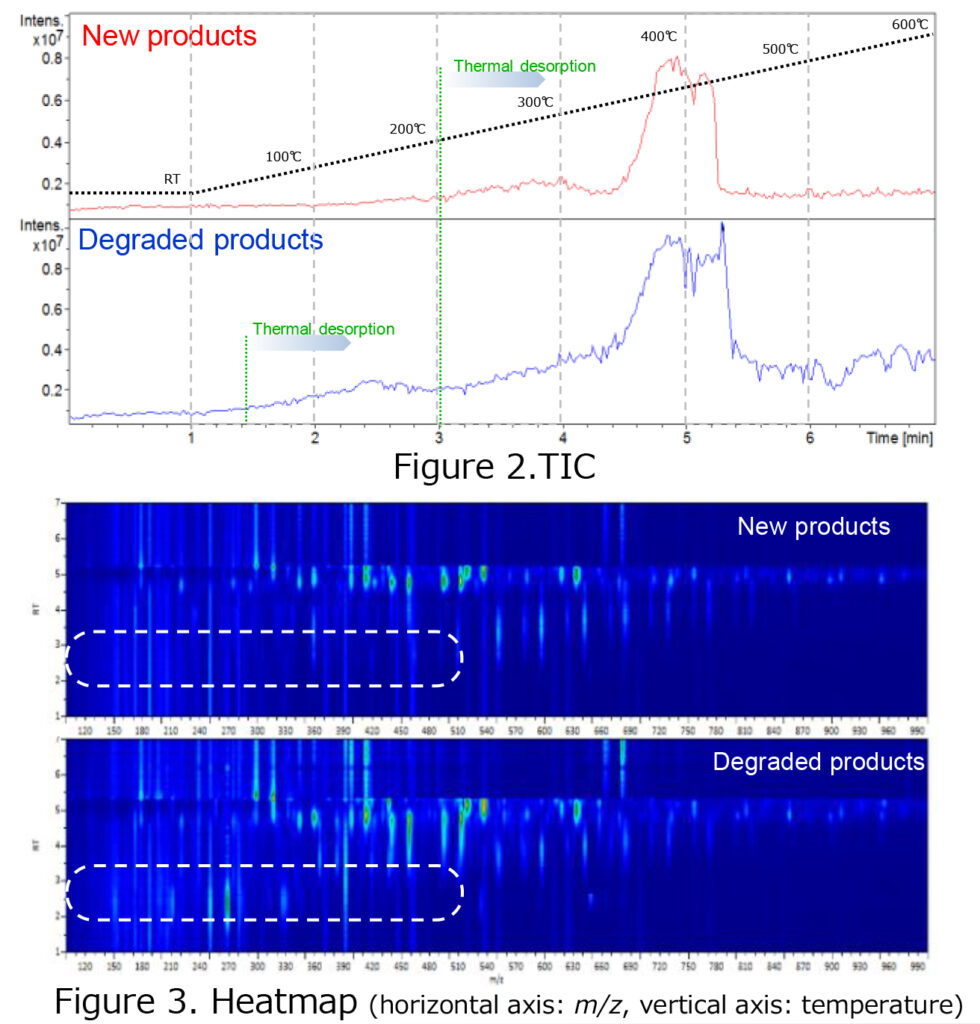

As a results of FT-IR, no significant difference was detected between the new and degraded products (Figure 1). Total ion current gram (TIC) of new and the degraded PBT products were shown in Figure 2. As adding the temperature gradient heating, thermal desorption and pyrolysis reactions were detected. The temperature at which thermal desorption products were detected were different between those two cases. For a detailed comparison, heat maps of the compounds were recorded, as shown in Figure 3. It was clear that the types and the intensity of detected ions differed considerably in the low temperature and low molecular weight region. Extracted ion current gram (EIC) of the PBT monomer (m/z 221.08, [C₁₂H₁₂O₄+H]⁺) were shown in Figure 4. The PBT monomer were detected at a temperature much lower than the pyrolysis temperature of the PBT (ca. 400℃) between them. Moreover, for the degraded products, it was detected at much lower than the new products. It was presumed that PBT monomer was included as one of the degradation products.
It was confirmed that ionRocket combined with DART-MS enables the detection of the degradation state during the initial degradation stage, which has not been detected by FT-IR spectroscopy.

Target

PBT / degradation / ionRocket / DART®-MS
